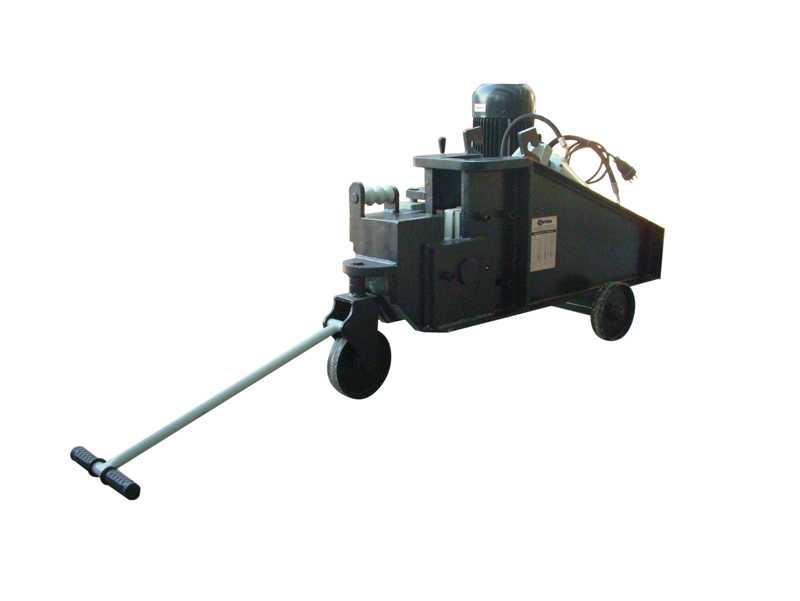

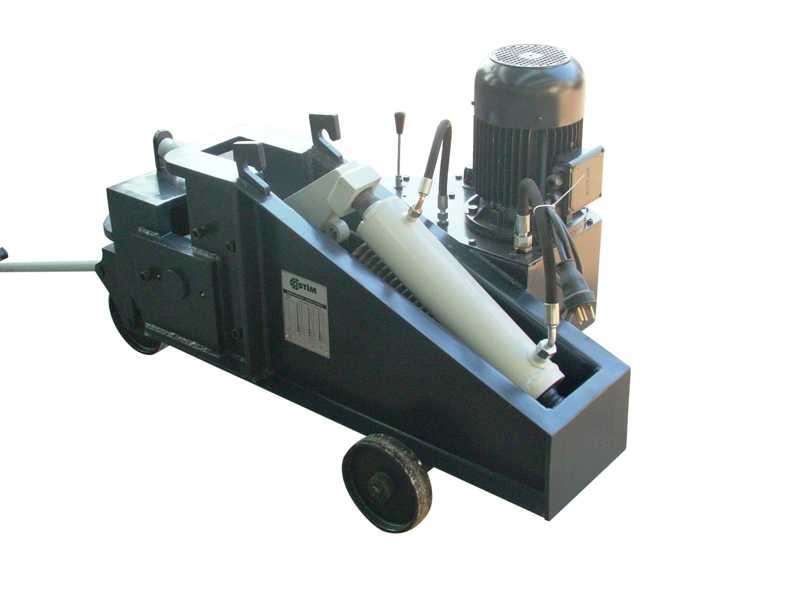

OSTIM C Series Rebar Cutting Machines
TECHNICAL SPECIFICATIONS
| |
C26 |
C36 |
C42 |
C52 |
| Max. Cutting Capacity 45 kg/mm2 |
26 mm |
36 mm |
42 mm |
52 mm |
|
Max. Cutting Capacity 65 kg/mm2
|
22 mm |
30 mm |
34 mm |
42 mm |
| Engine Power |
2,2 kW |
4,0 kW |
5,5 kW |
7,5 kW |
| Voltage |
380 V |
380 V |
380 V |
380 V |
| Weight |
25 kg |
350 kg |
425 kg |
690 kg |
| Dimensions |
90-50-60 cm |
135-62-75 cm |
145-67-80 cm |
165-75-85 cm |
| Speed |
9 rpm |
9 rpm |
8 rpm |
7,5 rpm |
| Power Transmission |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
| Frequency |
50 hz |
50 hz |
50 hz |
50 hz |
| Hydraulic Tank Capacity |
15 lt |
22 lt |
25 lt |
35 lt |
| Blade Dimensions |
50 x 50 x 15 |
80 x 80 x 25 |
85 x 85 x 25 |
100 x 100 x 30 |
